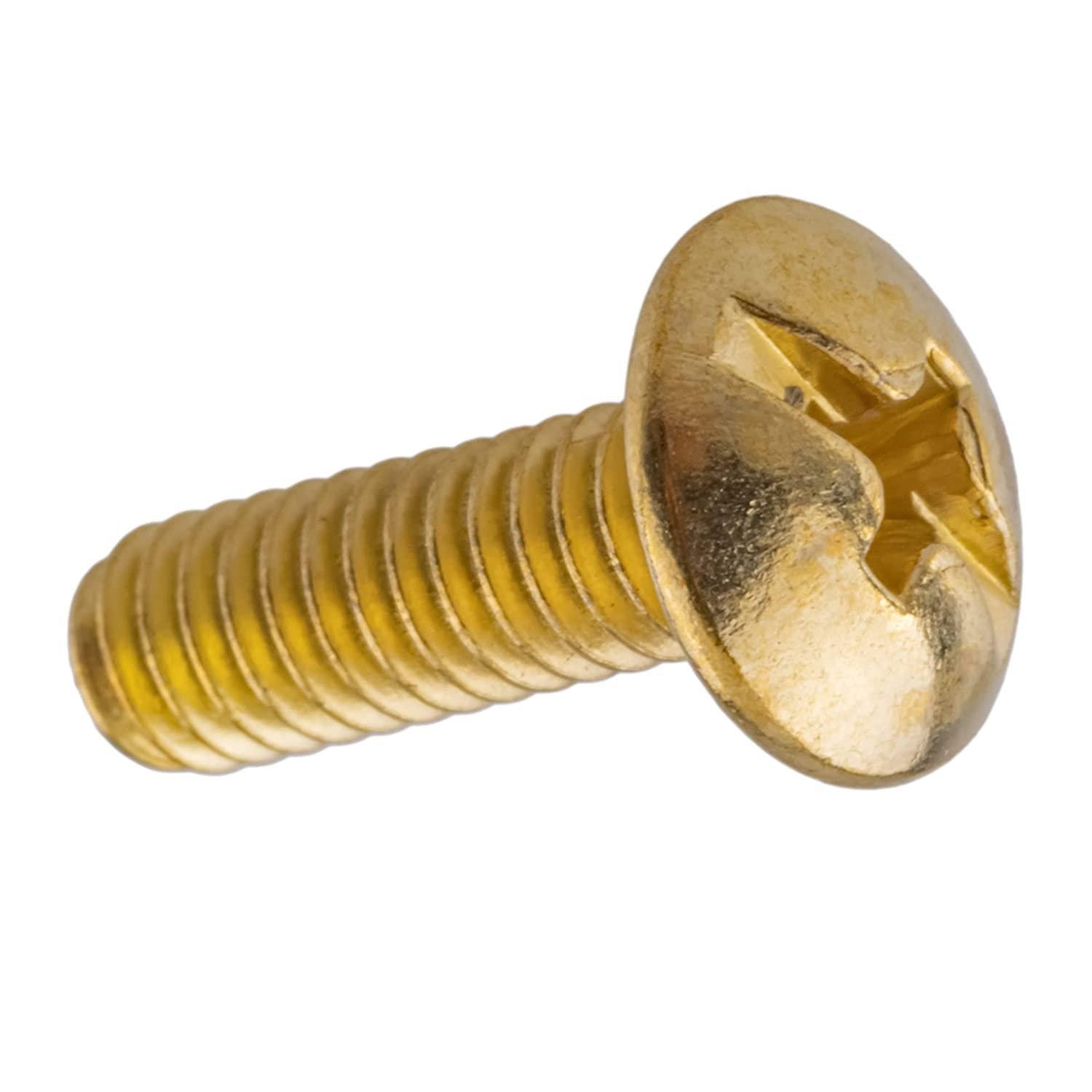

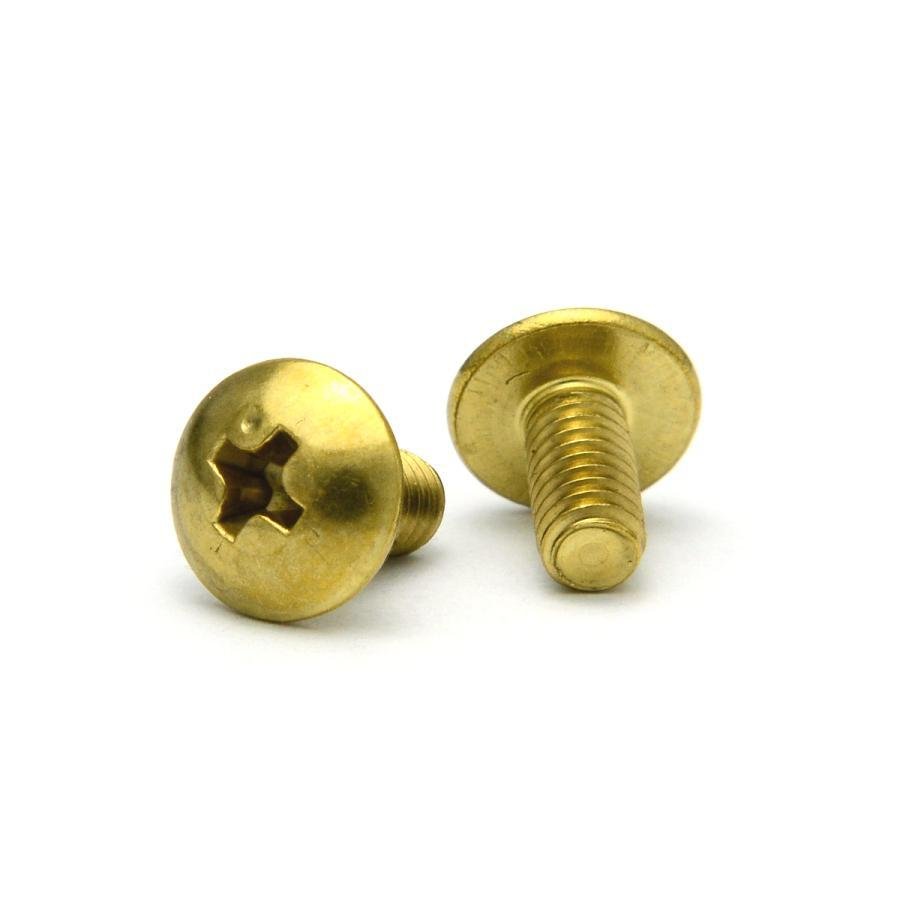

Brass Trush Head Machine Screw
Brass Trush Head Machine Screws are corrosion-resistant fasteners designed for secure fastening in electrical, electronic, and industrial applications. Their wide, low-profile truss head provides a larger bearing surface and a clean, finished appearance.
For More Technical Details Click Here
Technical Specifications
- Product Type: Brass Truss Head Machine Screw
- Head Type: Truss Head
- Drive Type: Slotted / Phillips (as required)
- Material: High-Quality Brass
- Thread Type: Metric, UNC, UNF, BSW, BA
- Size Range: M2 to M12 (Custom sizes available)
- Length: As per customer requirements
- Thread Style: Full Thread / Partial Thread
- Standards: DIN, ISO, BS, ANSI, JIS, or Custom Drawings
- Finish: Natural Brass, Nickel Plated, Tin Plated, Chrome Plated, Zinc Plated, or as required
Key Specifications
- Premium-quality brass construction
- Excellent corrosion and rust resistance
- Wide, low-profile truss head for increased bearing surface
- Slotted or Phillips drive options available
- Precision-machined threads for secure and reliable fastening
- High electrical and thermal conductivity
- Non-magnetic and spark-resistant
- Available in various sizes, thread types, and finishes
- Suitable for electrical, electronic, automotive, and industrial applications
- Manufactured to DIN, ISO, BS, ANSI, JIS, or custom specifications
Applications
- Electrical and electronic equipment
- Switchboards and control panels
- Sheet metal and thin material assemblies
- Furniture and hardware fittings
- Automotive and marine applications
- General industrial and engineering assemblies
Features Specification
- Low-profile truss head with a wide bearing surface
- Slotted or Phillips drive options available
- Precision-machined threads for secure fastening
- Excellent corrosion resistance and long service life
- Good electrical conductivity and machinability
- Available in metric and imperial thread sizes
Standards
- ANSI B18.6.3 (Truss Head Machine Screws)
- ASME B18.6.3
- IS standards (where applicable)
- Custom specifications as per customer drawings

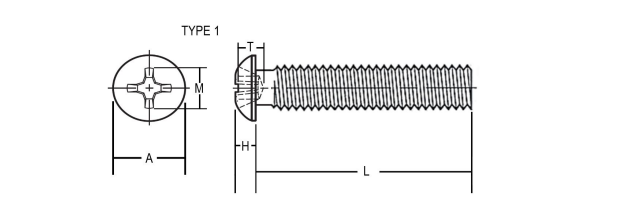

Length / Size
- Diameter: M2 to M12 (or equivalent imperial sizes)
- Length: 4 mm to 100 mm
- Custom sizes available on request
Material
- Free Cutting Brass IS 319 Grade I
- CW614N / CW617N
- C36000
- Other brass grades as per customer requirements
Finish
- Natural Brass
- Nickel Plated
- Tin Plated
- Chrome Plated
- Zinc Plated
- Antique Brass
- Custom coatings and finishes available as per customer requirements
Engineered for maximum surface coverage, secure fastening, and lasting performance.
