Brass Drop-In Anchor

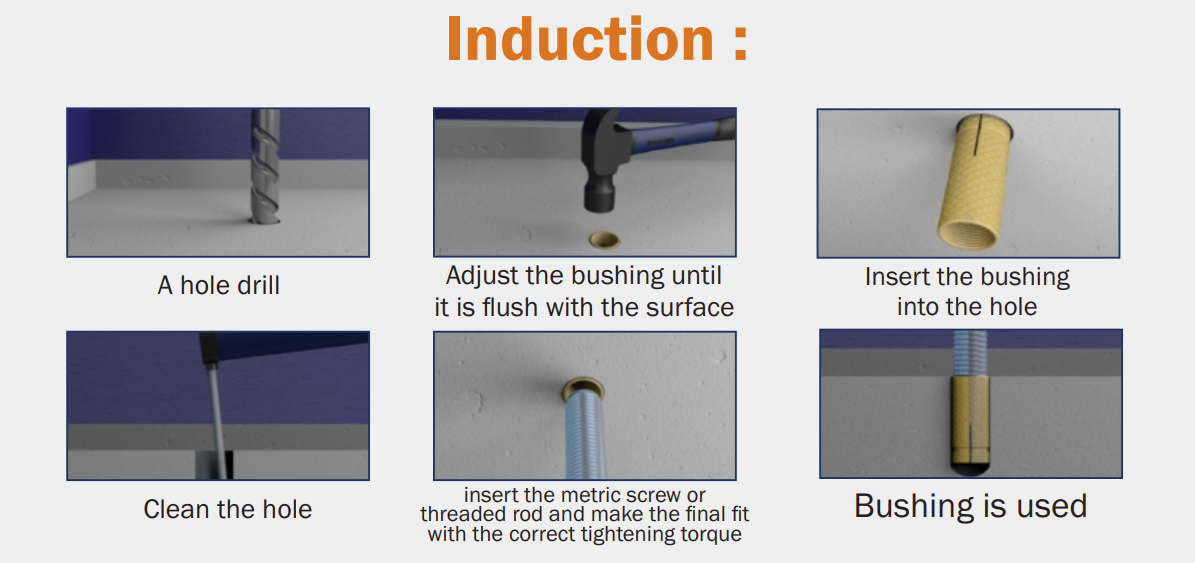

FieldFast Brass Anchors feature precision external knurling that delivers superior grip and prevents rotation during installation. Designed for tool-free setup, the anchor expands effortlessly as the screw is driven in - making it ideal for both professionals and on-site teams. Built as a reliable and cost-effective solution for outdoor applications, concrete, and solid masonry. Every anchor reflects our commitment to compact engineering, clean finishes, and long-lasting weather resistance - all offered at highly competitive prices.

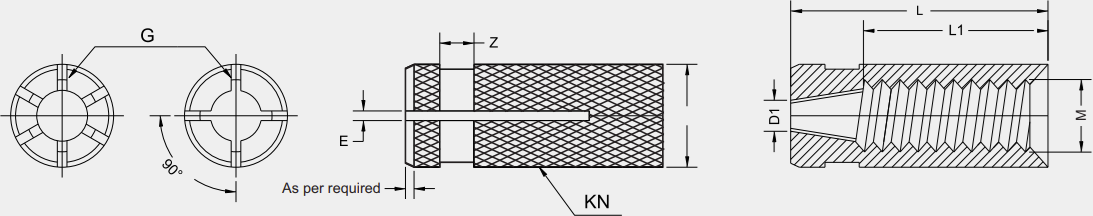

| Size | M | L | D | D1 | L1 | Z | G | E | KN |
|---|---|---|---|---|---|---|---|---|---|
| TBI 5/32" BSW | 5/32" × 32 | 16 | 5 | 2 | 12 | 1 | 4 | 0.5 | 0.30 |
| TBI 1/4" UNC | 1/4" × 20 | 23 | 8 | 3.5 | 19 | 2 | 4 | 0.75 | 0.80 |
| TBI 5/16" UNC | 5/16 × 18 | 28 | 10 | 4 | 23 | 2 | 4 | 1 | 1.50 |
| TBI 3/8" UNC | 3/8" × 16 | 32 | 12 | 5 | 27 | 3 | 4 | 1 | 2.10 |
| TBI 1/2" UNC | 1/2" × 13 | 38 | 15 | 5.5 | 32 | 2.5 | 6 | 1 | 3.00 |
| TBI M4 | M4 × 0.70 | 16 | 5 | 2 | 12 | 1 | 4 | 0.5 | 0.30 |
| TBI M5 | M5 × 0.80 | 20 | 6.5 | 2.5 | 16 | 2 | 4 | 0.5 | 0.40 |
| TBI M6 | M6 × 1.00 | 23 | 8 | 3.5 | 19 | 2 | 4 | 0.75 | 0.80 |
| TBI M8 | M8 × 1.25 | 28 | 10 | 4 | 23 | 2 | 4 | 1 | 1.50 |
| TBI M10 | M10 × 1.50 | 32 | 12 | 5 | 27 | 3 | 4 | 1 | 2.10 |
| TBI M12 | M12 × 1.75 | 38 | 15 | 5.5 | 32 | 2.5 | 6 | 1 | 3.00 |
| TBI M14 | M14 × 2.00 | 40 | 18 | 7 | 33 | 3 | 6 | 1 | 3.50 |
| TBI M16 | M16 × 2.00 | 45 | 20 | 8 | 36 | 3.5 | 6 | 1 | 4.00 |
Features Specification
- Suitable for solid bricks.
- Anchor can be removed and replaced.
- Knurled body for improved performance.
- Corrosion resistant for all environments.
- Temperature resistant and easy to install.
- Can be re-assembled when required.
Applications
- Air Ducts
- Cable Trays
- Curtain Rails
- Wall Panels
- Safety Covers
- Industrial Fixtures
Pull Out Testing Facility
At FieldFast Metals, every anchor and fastener undergoes rigorous in-house Pull Out Testing. Our testing facility verifies load-bearing capacity, tensile strength and grip performance under real-world conditions to ensure every product meets international quality standards before shipment.
Material
Brass - CuZn39Pb3, CW614N, CW602N, CZ132, C35330, SS-5170
Finish
Natural, Electro-Tin, Chrome or Nickel Plated.
