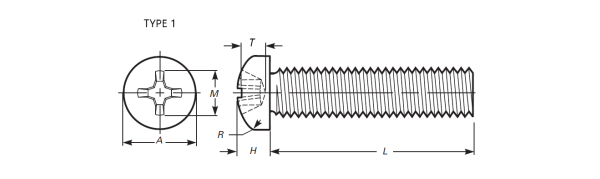

Brass Philips Pan Head Machine Screw
Brass Phillips Pan Head Machine Screws are durable, corrosion-resistant fasteners designed for secure fastening in electrical, electronic, and industrial applications. Their Phillips pan head provides improved grip for easy installation and a clean, finished appearance.
For More Technical Details Click Here
Applications
- Electrical and electronic assemblies
- Switchgear and control panels
- Furniture and hardware fittings
- Automotive components
- Marine and plumbing equipment
- General industrial and engineering applications
Technical Specifications
- Product Type: Brass Phillips Pan Head Machine Screw
- Head Type: Pan Head
- Drive Type: Phillips
- Material: High-Quality Brass
- Thread Type: Metric, UNC, UNF, BSW, BA
- Size Range: M2 to M12 (Custom sizes available)
- Length: As per customer requirements
- Thread Style: Full Thread / Partial Thread
- Standards: DIN, ISO, BS, ANSI, JIS, or Custom Drawings
- Finish: Natural Brass, Nickel Plated, Tin Plated, Chrome Plated, Zinc Plated, or as required
Key Specifications
- Premium-quality brass construction
- Excellent corrosion and rust resistance
- Phillips drive for improved grip and reduced cam-out
- Pan head design provides a clean, finished appearance
- Precision-machined threads for secure and reliable fastening
- High electrical and thermal conductivity
- Non-magnetic and spark-resistant
- Available in various sizes, thread types, and finishes
- Suitable for electrical, electronic, automotive, and industrial applications
- Manufactured to DIN, ISO, BS, ANSI, JIS, or custom specifications
Features Specification
- Pan head with Phillips drive for improved torque and reduced slippage.
- Wide bearing surface ensures secure fastening.
- Excellent corrosion resistance and long service life.
- Precision threads for reliable performance.
- Good electrical conductivity and machinability.
- Available in metric and imperial thread sizes.
Standards
- DIN 7985
- ISO 7045
- IS 7483 (where applicable)
- Custom specifications as per customer drawings
Length / Size
- Diameter: M2 to M12 (or equivalent imperial sizes)
- Length: 4 mm to 100 mm
- Custom sizes available on request
Material
- Free Cutting Brass IS 319 Grade I
- CW614N / CW617N
- C36000
- Other brass grades as per customer requirements
Finish
- Natural Brass
- Nickel Plated
- Tin Plated
- Chrome Plated
- Zinc Plated
- Antique Brass
- Custom coatings and finishes available as per customer requirements
Engineered for superior grip, lasting strength, and corrosion-resistant performance.
