Brass Penta Bolts
Brass Penta Bolts are specialized security fasteners with a five-sided (pentagonal) head designed to prevent unauthorized removal. They provide excellent corrosion resistance, durability, and reliable performance, making them ideal for utility, electrical, public infrastructure, and tamper-resistant applications.
For More Technical Details Click Here
Features
- Five-sided security head for tamper resistance
- Excellent corrosion and rust resistance
- Precision-machined threads for secure fastening
- Non-magnetic and spark-resistant
- High durability and long service life
- Suitable for indoor and outdoor use
- Available in custom sizes and thread types
Specification

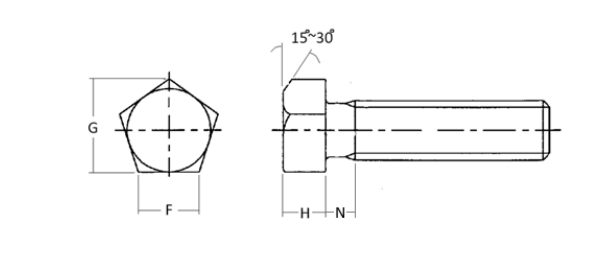

- Head Type: Pentagonal (Penta Head)
- Thread Type: Metric (MM), UNC, UNF, BSW, BSF or custom
- Manufacturing Process: CNC Machined / Cold Forged
- Tolerance: As per international standards
- Custom designs available as per drawings and specifications
Applications
- Electrical utility equipment
- Meter boxes and utility cabinets
- Telecom enclosures
- Public infrastructure
- Marine and outdoor installations
- Industrial machinery
- Security and anti-theft fastening applications
Standards
- Custom Security Fastener Standards
- DIN / ISO / ANSI dimensions available where applicable
- Manufactured as per customer drawings and specifications
Length / Size
- Diameter: M4 to M20
- Length: 10 mm to 150 mm
- Custom thread lengths and dimensions available
Material
- Free Cutting Brass IS 319 Type I
- CW614N / CW617N
- C36000
- CZ121 / CZ122
- Other brass grades available on request
Finish
- Natural Brass
- Nickel Plated
- Tin Plated
- Chrome Plated
- Zinc Plated
- Polished Brass
- Custom coatings and finishes available on request
