Brass Hose Barb Fittings
Common Applications
- Garden, agricultural, and irrigation hose systems
- Air and pneumatic tubing connections
- Fuel, oil, and chemical transfer lines
- Industrial washdown and water transfer systems
- Marine and automotive hose fittings
- HVAC and misting system connections
- Compressed air and gas hose assemblies
Features
- Ribbed/barbed exterior for firm hose grip and slip resistance
- Leak-resistant connection when paired with hose clamps
- Available in multiple configurations (straight, elbow, tee, reducing, etc.)
- Corrosion and rust-resistant construction
- Smooth internal bore for consistent flow and minimal restriction
- Durable under repeated pressure cycles and outdoor exposure
- Easy to install without specialized tools
Features Specification

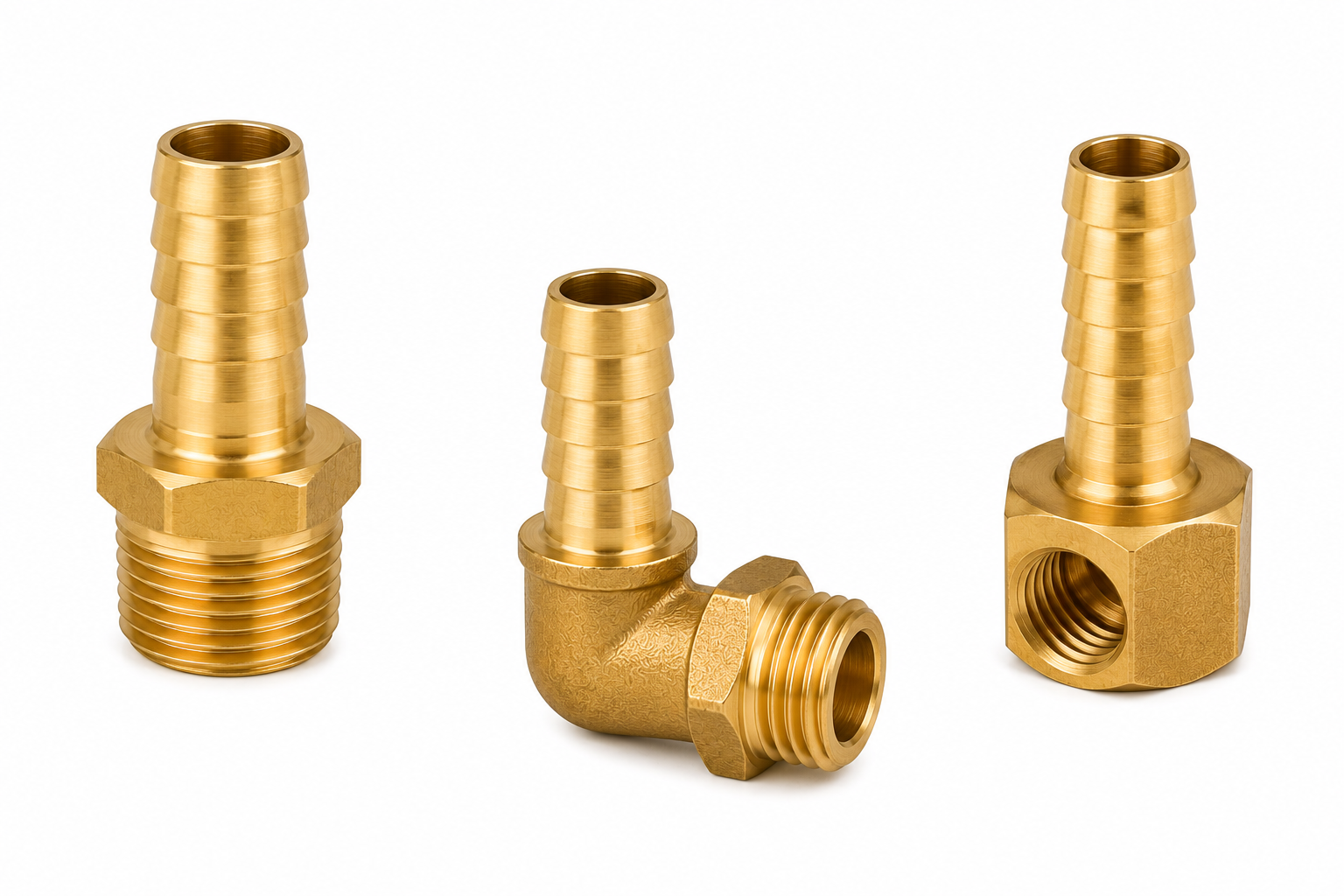

Types of Brass Hose Barb Fittings
- Straight Hose Barb – Connects two hose ends or a hose to a threaded port in a straight line
- Reducing Hose Barb – Joins hoses of two different diameters
- Elbow Hose Barb (90°/45°) – Connects hoses at an angle, useful for tight routing spaces
- Tee Hose Barb – Splits or merges flow between three hose connections
- Y-Hose Barb – Divides a single line into two branches at an angle
- Hex Nipple Hose Barb – Barb on one end with hex body for wrench grip
- Male/Female Threaded Hose Barb – Combines a barbed hose end with threaded pipe connection
- Cross Hose Barb – Four-way connector for multi-directional flow distribution
- Hose Barb Plug/Cap – Used to seal off unused barb ports
Material
- Base Alloy: High-grade Brass (CW614N / C36000 / C37700)
- Composition: Copper-Zinc alloy offering strength, machinability, and corrosion resistance
- DZR Brass Option: Dezincification-resistant brass for potable water and humid environments
- Lead Content: Low-lead/lead-free options available for drinking water compliance
Temp & WP (Working Pressure)
- Operating Temperature Range: -20°C to 120°C (varies by hose material used)
- Working Pressure: Up to 150–200 PSI (10–14 Bar), depending on size and hose compatibility
- Burst Pressure: Typically 3–4x rated working pressure (application/hose-dependent) Note: Actual temperature and pressure ratings depend on hose type, clamp quality, and installation conditions
Threads
- Thread Types: BSP, NPT, BSPT, Metric (DIN)
- Thread Form: Male and Female threading available
- Size Range: 1/8" to 2" (or as per client/OEM specification)
- Custom Threading: Available to match international plumbing and industrial standards
Finish
- Natural Brass Finish – Standard bright/polished appearance
- Nickel-Plated Finish – Added corrosion resistance and clean appearance
- Chrome-Plated Finish – Premium finish for visible or decorative installations
- Matte/Satin Finish – Suited for industrial-grade applications
- Anti-Tarnish Coating – Preserves surface shine during storage and shipping
