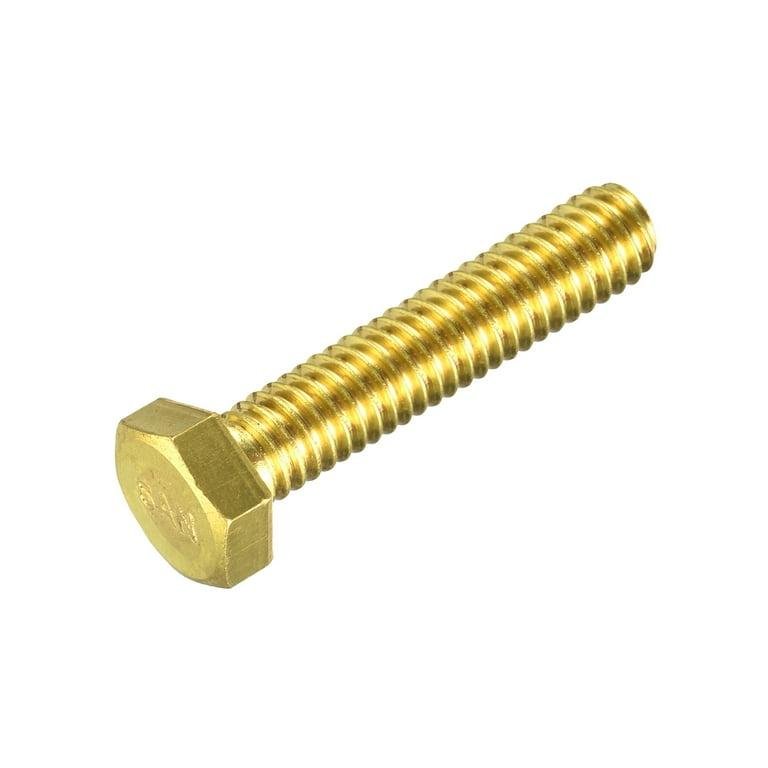

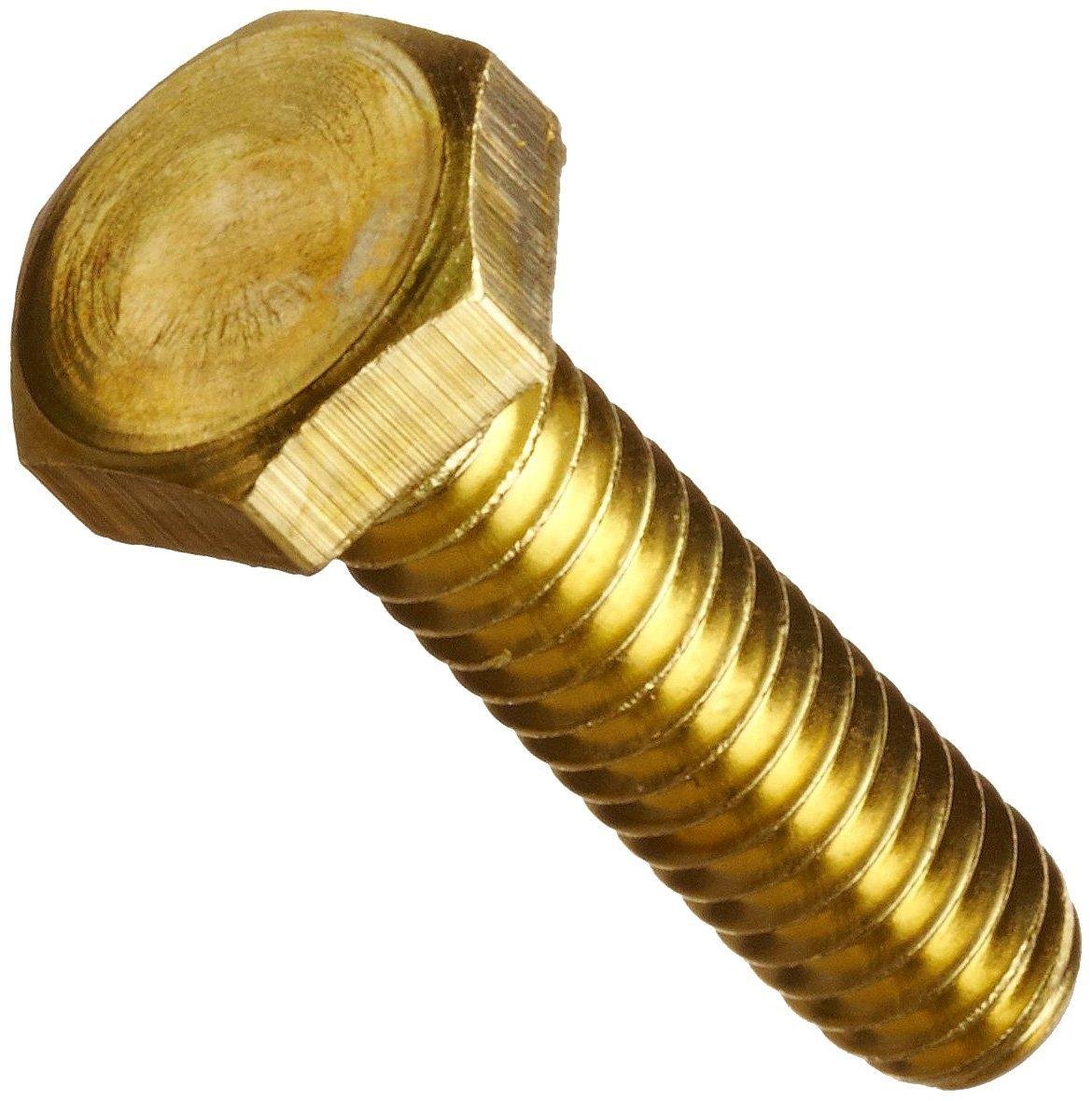

Brass Hex Head Machine Screw
Brass Hex Head Machine Screws are durable, corrosion-resistant fasteners designed for secure fastening in industrial, electrical, and mechanical applications. Their hex head allows easy tightening with standard wrenches or spanners, ensuring reliable performance and a strong hold.
For More Technical Details Click Here
Applications
- Electrical and electronic equipment
- Marine hardware
- Furniture and decorative fittings
- Automotive components
- Industrial machinery
Technical Specifications
- Product Type: Brass Hex Head Machine Screw
- Head Type: Hex Head
- Drive Type: External Hex
- Material: High-Quality Brass
- Thread Type: Metric, UNC, UNF, BSW, BA
- Size Range: M2 to M12 (Custom sizes available)
- Length: As per customer requirements
- Thread Style: Full Thread / Partial Thread
- Standards: DIN, ISO, BS, ANSI, JIS, or Custom Drawings
- Finish: Natural Brass, Nickel Plated, Tin Plated, Chrome Plated, Zinc Plated, or as required
Features & Specification
- Manufactured from high-quality brass for superior strength and durability
- Excellent resistance to corrosion, moisture, and oxidation
- Hex head design allows high torque and easy installation with standard tools
- Precision-cut threads ensure secure and reliable fastening
- High electrical and thermal conductivity
- Non-magnetic and spark-resistant properties
Features Specification
- Premium-quality brass construction
- Excellent corrosion and rust resistance
- External hex head for easy tightening with a wrench or spanner
- Precision-machined threads for secure and reliable fastening
- High mechanical strength and long service life
- Good electrical and thermal conductivity
- Non-magnetic and spark-resistant
- Available in various sizes, thread types, and finishes
- Suitable for electrical, automotive, marine, and industrial applications
- Manufactured to DIN, ISO, BS, ANSI, JIS, or custom specifications
Standards
- DIN 964
- ISO 2010
- ANSI / ASME (as applicable)

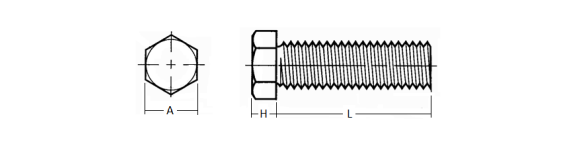

Length / Size
- Diameter: M2 to M16 (or equivalent imperial sizes)
- Length: 4 mm to 150 mm
- Thread: Metric (ISO) and Unified (UNC/UNF)
- Custom Sizes: Available as per customer drawings and specifications
Material
- High-Quality Brass
- Free Cutting Brass (IS 319 Type I)
- CZ108 / CZ121 Brass
- CW614N / CW617N Brass (on request)
- Other brass grades available as per customer specifications and international standards
Finish
- Natural Brass
- Polished Brass
- Nickel Plated
- Tin Plated
- Chrome Plated
- Zinc Plated
- Brass Passivated
- Custom finishes and protective coatings available as per customer requirements
Engineered for maximum torque, superior durability, and dependable fastening.
