Brass Hex Head Cap Screw
Brass Hex Head Cap Screws are high-strength threaded fasteners with a hexagonal head, designed for secure fastening in electrical, mechanical, marine, and industrial applications. They offer excellent corrosion resistance, durability, and an attractive finish, making them ideal for both functional and decorative uses.
For More Technical Details Click Here
Features Specification
- High corrosion and rust resistance
- Precision-machined threads for secure fastening
- Excellent electrical and thermal conductivity
- Non-magnetic and spark-resistant
- Easy installation using standard wrenches
- Suitable for indoor and outdoor applications
- Available in custom sizes and thread types
- Thread Type: Metric (MM), UNC, UNF, BSW, BSF or custom
- Head Type: Hex Head
- Manufacturing Process: Cold Forged / CNC Machined
- Tolerance: As per international standards
- Customization: Available as per customer drawings and specifications
Applications
- Electrical and electronic equipment
- Switchgear and panel boards
- Automotive components
- Marine and shipbuilding industries
- Construction and engineering projects
- Plumbing and hardware assemblies
- Industrial machinery
Standards
- DIN 933
- DIN 931
- ISO 4014
- ISO 4017
- ANSI / ASME B18.2.1
- BS 1768 (or equivalent)

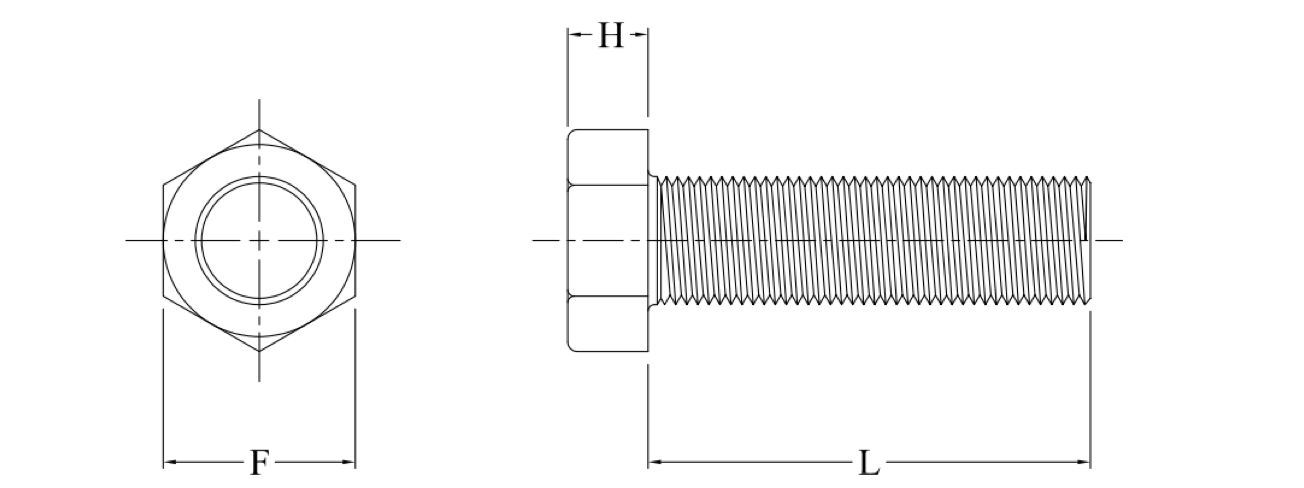

Length / Size
- Diameter: M3 to M24
- Length: 6 mm to 200 mm
- Custom sizes available on request
Material
- Free Cutting Brass IS 319 Type I
- CW614N / CW617N
- C36000
- CZ121 / CZ122
- Other brass grades available on request
Finish
- Natural Brass
- Nickel Plated
- Tin Plated
- Chrome Plated
- Zinc Plated
- Brass Polished
- Custom coating as per customer requirements
