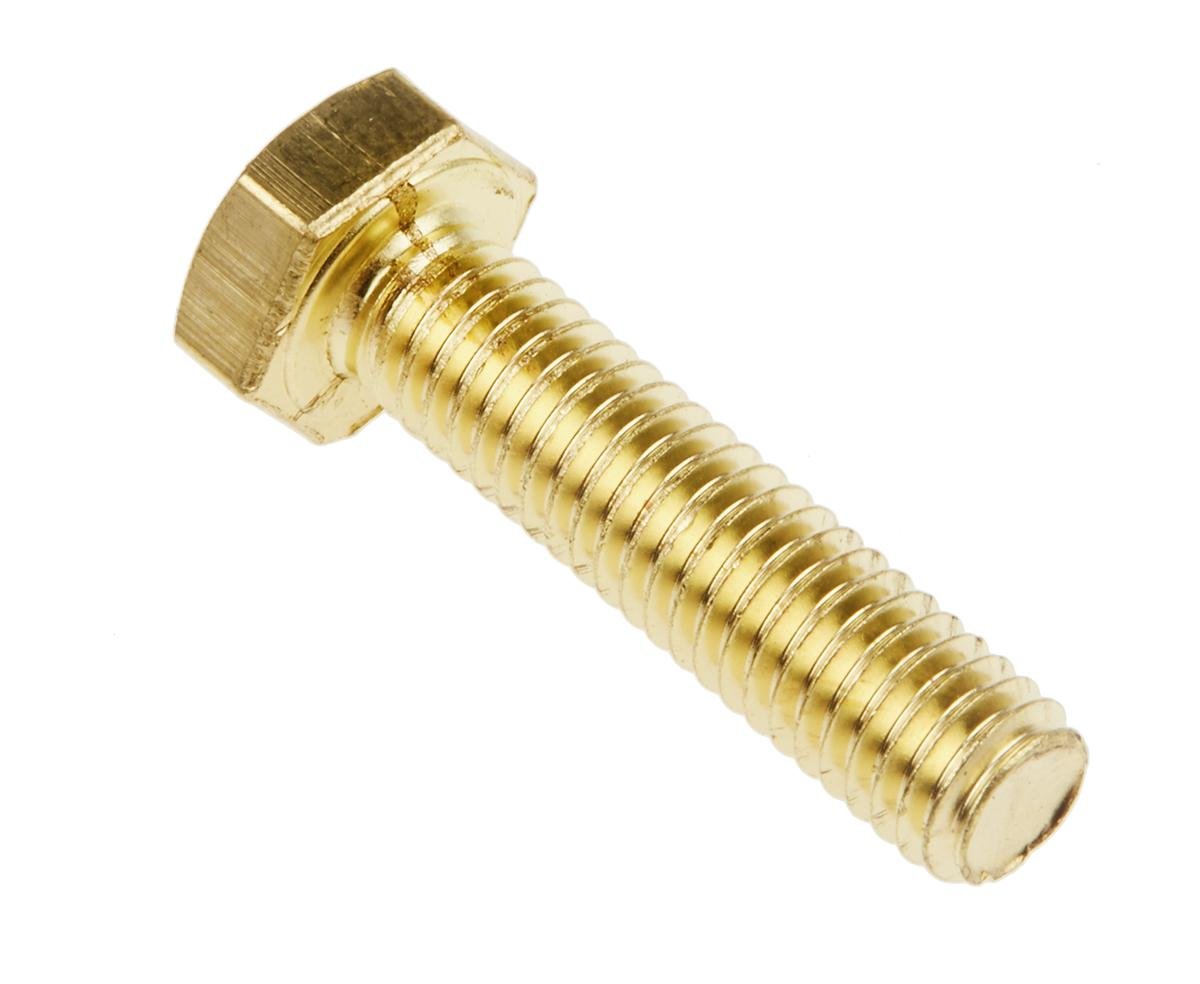

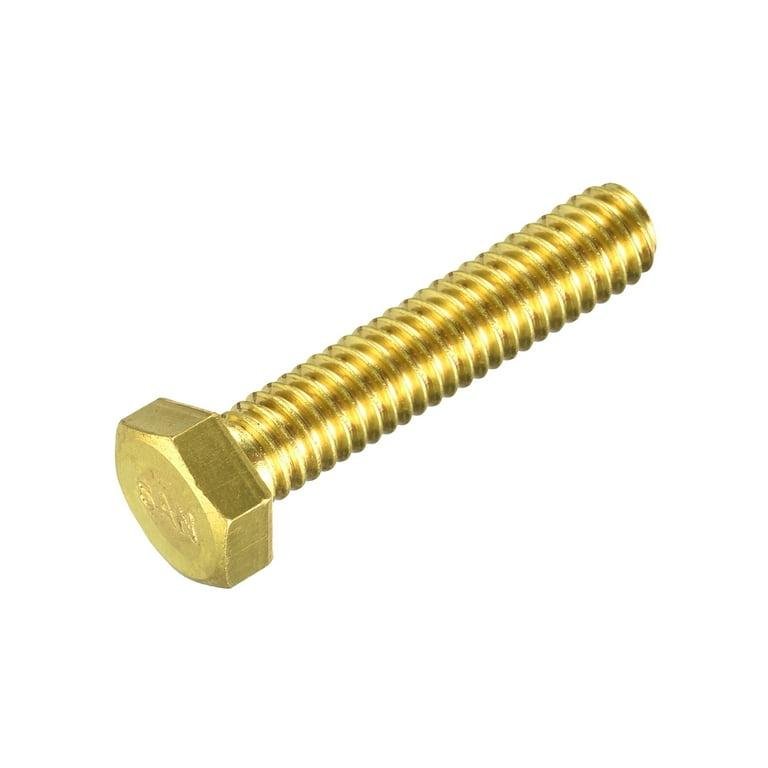

Brass Heavy Hex Cap Screw
Brass Heavy Hex Cap Screws are premium heavy-duty fasteners with a larger hexagonal head, designed for high-strength and high-torque fastening applications. They offer excellent corrosion resistance, precision threading, and long-lasting performance, making them ideal for electrical, marine, industrial, and engineering industries.
For More Technical Details Click Here
Applications
- Heavy industrial machinery
- Electrical switchgear and control panels
- Marine and offshore equipment
- Construction and structural assemblies
- Automotive and engineering industries
- Pumps, valves, compressors, and mechanical equipment
- Renewable energy and infrastructure projects
Features
- Heavy hex head for higher torque transmission
- Excellent corrosion and oxidation resistance
- Precision-machined threads for secure fastening
- High strength and long service life
- Non-magnetic and spark-resistant
- Easy installation with standard tools
- Available in standard and custom specifications
Specification
- Head Type: Heavy Hex Cap Screw
- Thread Type: Metric (MM), UNC, UNF, BSW, BSF or custom
- Manufacturing Process: Cold Forged / CNC Machined
- Tolerance: As per DIN, ISO, ANSI, and BS standards
- Custom dimensions and thread profiles available on request
Standards
- DIN 931
- DIN 933
- ISO 4014
- ISO 4017
- ANSI / ASME B18.2.1
- BS Standards (Equivalent)
- Custom standards available on request
Length / Size
- Diameter: M6 to M30
- Length: 20 mm to 300 mm
- Custom sizes, thread lengths, and dimensions available
Material
- Free Cutting Brass IS 319 Type I
- CW614N / CW617N
- C36000
- CZ121 / CZ122
- High-strength brass alloys available on request
Finish
- Natural Brass
- Nickel Plated
- Tin Plated
- Chrome Plated
- Zinc Plated
- Polished Brass
- Custom coatings and finishes available on request
