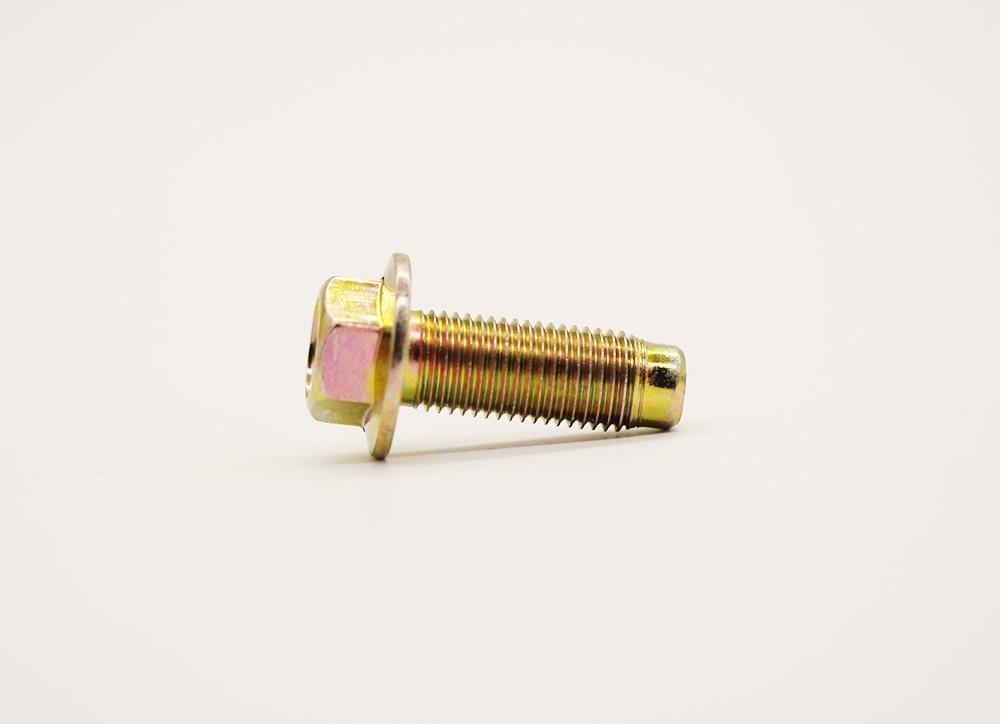

Brass Flange Bolts
Brass Flange Bolts feature an integrated washer-like flange beneath the hex head, providing a larger bearing surface for improved load distribution and reduced loosening. They are widely used in electrical, automotive, marine, and industrial applications where corrosion resistance and reliable fastening are essential.
For More Technical Details Click Here
Specification
- Thread Type: Metric (MM), UNC, UNF, BSW, BSF or custom
- Head Type: Hex Flange Head
- Manufacturing Process: Cold Forged / CNC Machined
- Tolerance: As per international standards
- Custom manufacturing available as per drawings and samples
Design & Structural Features
- Built-in flange eliminates the need for a separate washer
- Excellent corrosion and rust resistance
- High strength and long service life
- Precision threads for secure fastening
- Non-magnetic and spark-resistant
- Easy to install and remove
- Available in custom sizes and thread types
Applications
- Electrical and electronic equipment
- Automotive and EV components
- Marine and offshore equipment
- Machinery and industrial assemblies
- Construction and engineering projects
- Plumbing and hardware fittings
- Renewable energy installations
Standards
- DIN 6921
- ISO 4162
- ANSI / ASME B18.2.1
- BS Standards (Equivalent)
- Custom standards available on request

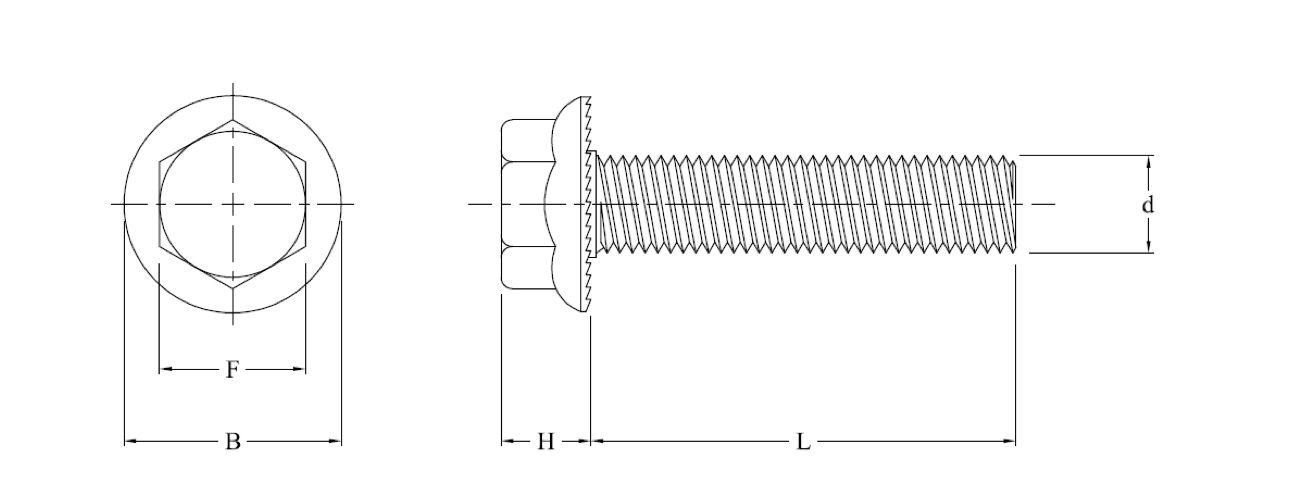

Length / Size
- Diameter: M4 to M24
- Length: 8 mm to 200 mm
- Custom sizes and thread lengths available
Material
- Free Cutting Brass IS 319 Type I
- CW614N / CW617N
- C36000
- CZ121 / CZ122
- Other brass grades as per customer requirements
Finish
- Natural Brass
- Nickel Plated
- Tin Plated
- Chrome Plated
- Zinc Plated
- Polished Brass
- Custom finishes and coatings available on request
