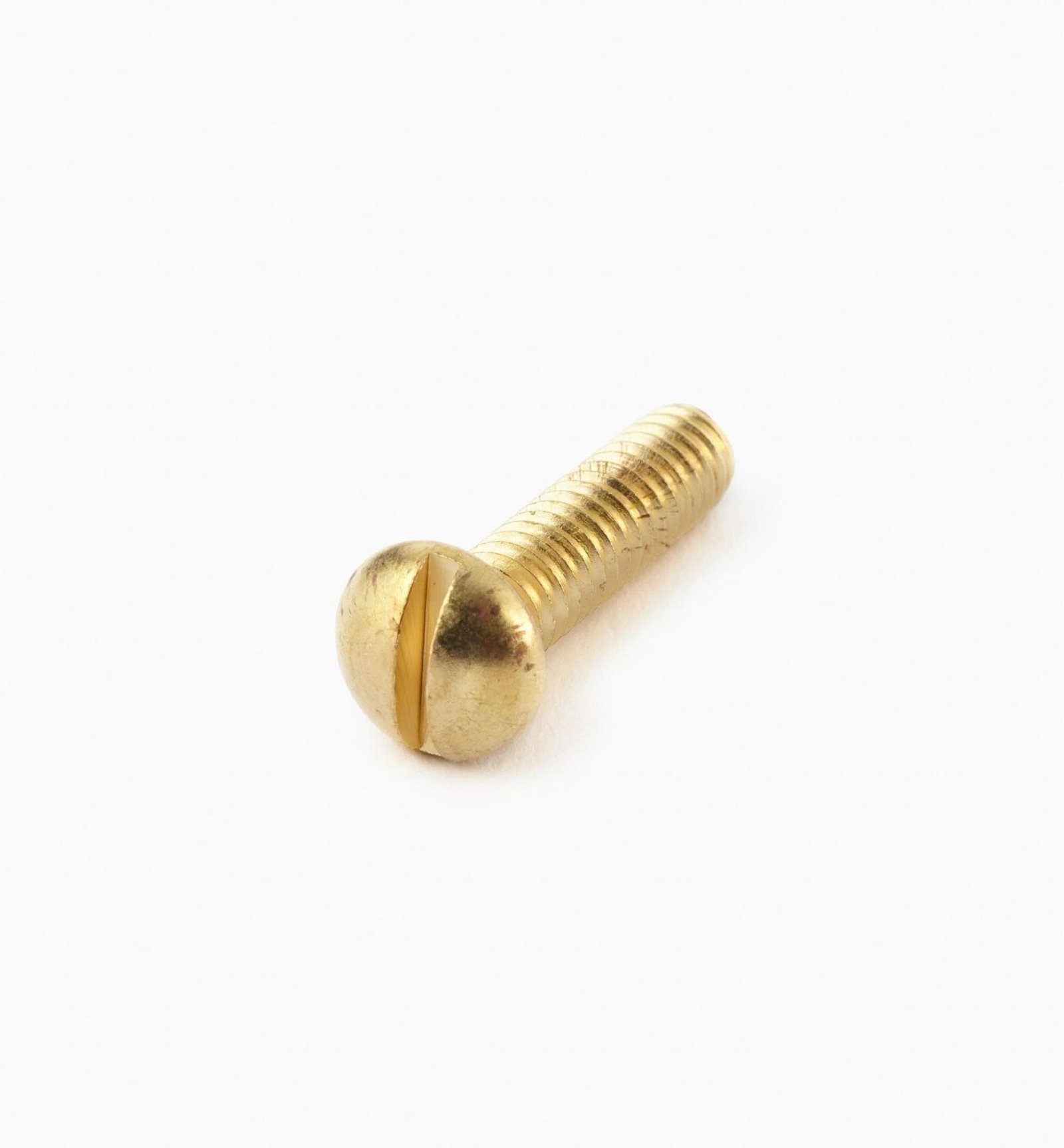

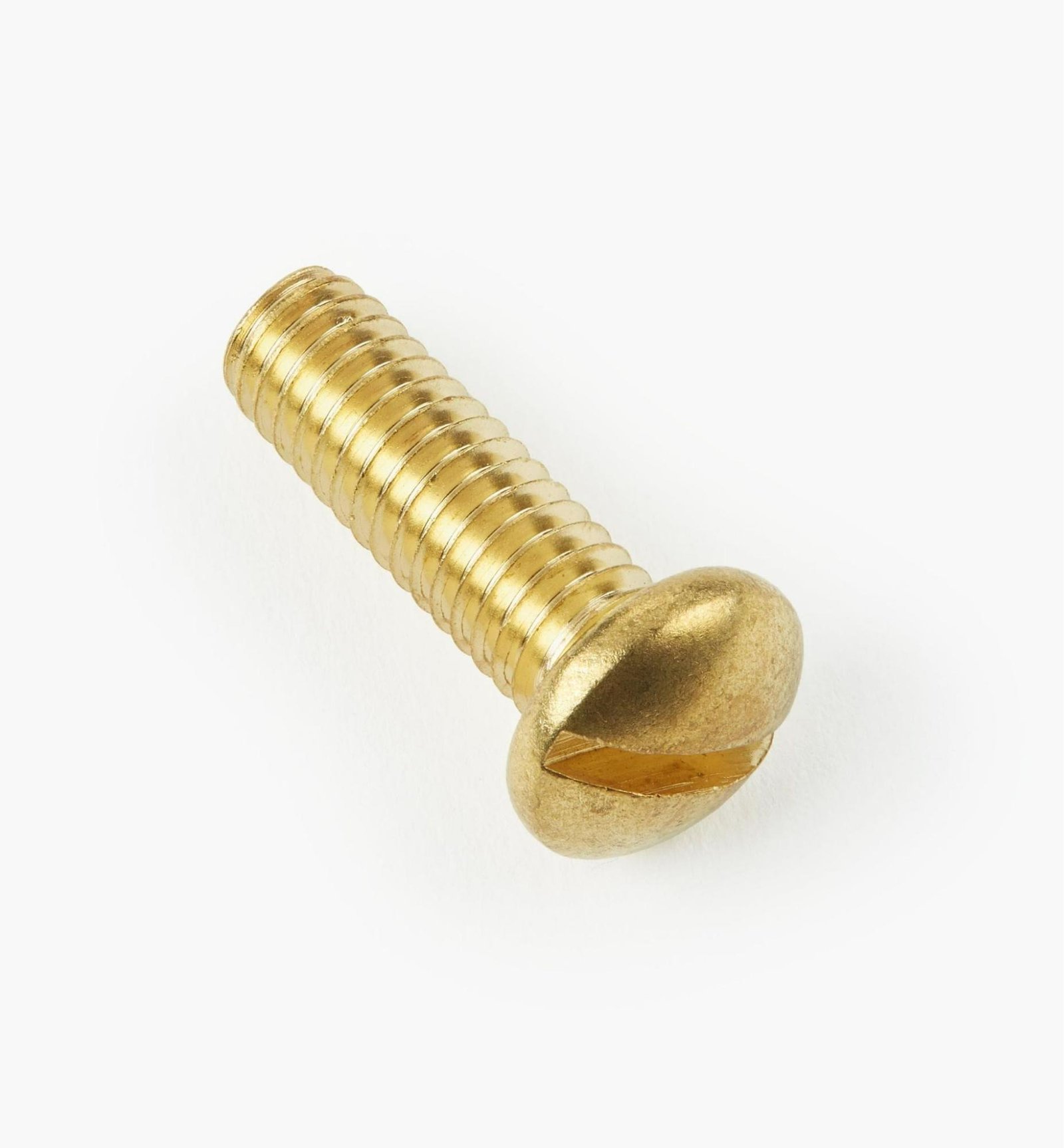

Brass Fillister Head Machine Screw
Brass Fillister Head Machine Screws are durable, corrosion-resistant fasteners designed for secure fastening in electrical, electronic, and industrial applications. Their high cylindrical head provides enhanced gripping and a clean, professional finish
For More Technical Details Click Here
Technical Specifications
- Product Type: Brass Fillister Head Machine Screw
- Head Type: Fillister Head
- Drive Type: Slotted / Phillips (as required)
- Material: High-Quality Brass
- Thread Type: Metric, UNC, UNF, BSW, BA
- Size Range: M2 to M12 (Custom sizes available)
- Length: As per customer requirements
- Thread Style: Full Thread / Partial Thread
- Standards: DIN, ISO, BS, ANSI, JIS, or Custom Drawings
- Finish: Natural Brass, Nickel Plated, Tin Plated, Chrome Plated, Zinc Plated, or as required
Key Specifications
- Premium-quality brass construction
- Excellent corrosion and rust resistance
- High cylindrical fillister head for improved tool engagement
- Available with Slotted or Phillips drive options
- Precision-machined threads for secure and reliable fastening
- High electrical and thermal conductivity
- Non-magnetic and spark-resistant
- Available in various sizes, thread types, and finishes
- Suitable for electrical, electronic, automotive, and industrial applications
- Manufactured to DIN, ISO, BS, ANSI, JIS, or custom specifications
Features Specification
- Manufactured from high-quality brass for superior strength and durability
- Excellent resistance to corrosion, moisture, and oxidation
- Fillister head design provides enhanced grip and higher torque application
- Available with Slotted or Phillips drive for easy installation
- Precision-cut threads ensure secure and reliable fastening
- Good electrical and thermal conductivity
- Non-magnetic and spark-resistant properties
- Smooth surface finish for an attractive appearance
Length / Size
- Thread Sizes: M2 to M12 (Metric) / #2 to 1/2" (Imperial)
- Length Range: 6 mm to 100 mm (1/4" to 4")
- Thread Type: Metric, UNC, UNF, BSW, BSF, or as per customer specification
- Custom Sizes: Available in special diameters, lengths, and thread configurations on request
Material
- High-Quality Brass
- Free Cutting Brass (IS 319 Type I)
- CZ108 / CZ121 Brass
- CW614N / CW617N Brass (on request)
- Other brass grades available as per customer specifications and international standards
Finish
- Natural Brass
- Polished Brass
- Nickel Plated
- Tin Plated
- Chrome Plated
- Zinc Plated
- Brass Passivated
- Custom finishes and protective coatings available as per customer requirements
Premium Brass Fillister Head Machine Screws engineered for secure fastening, corrosion resistance, and exceptional durability.
