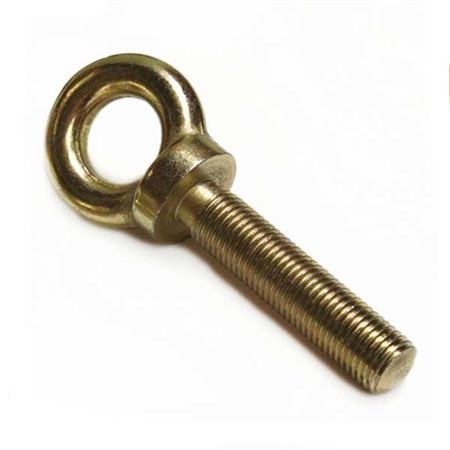

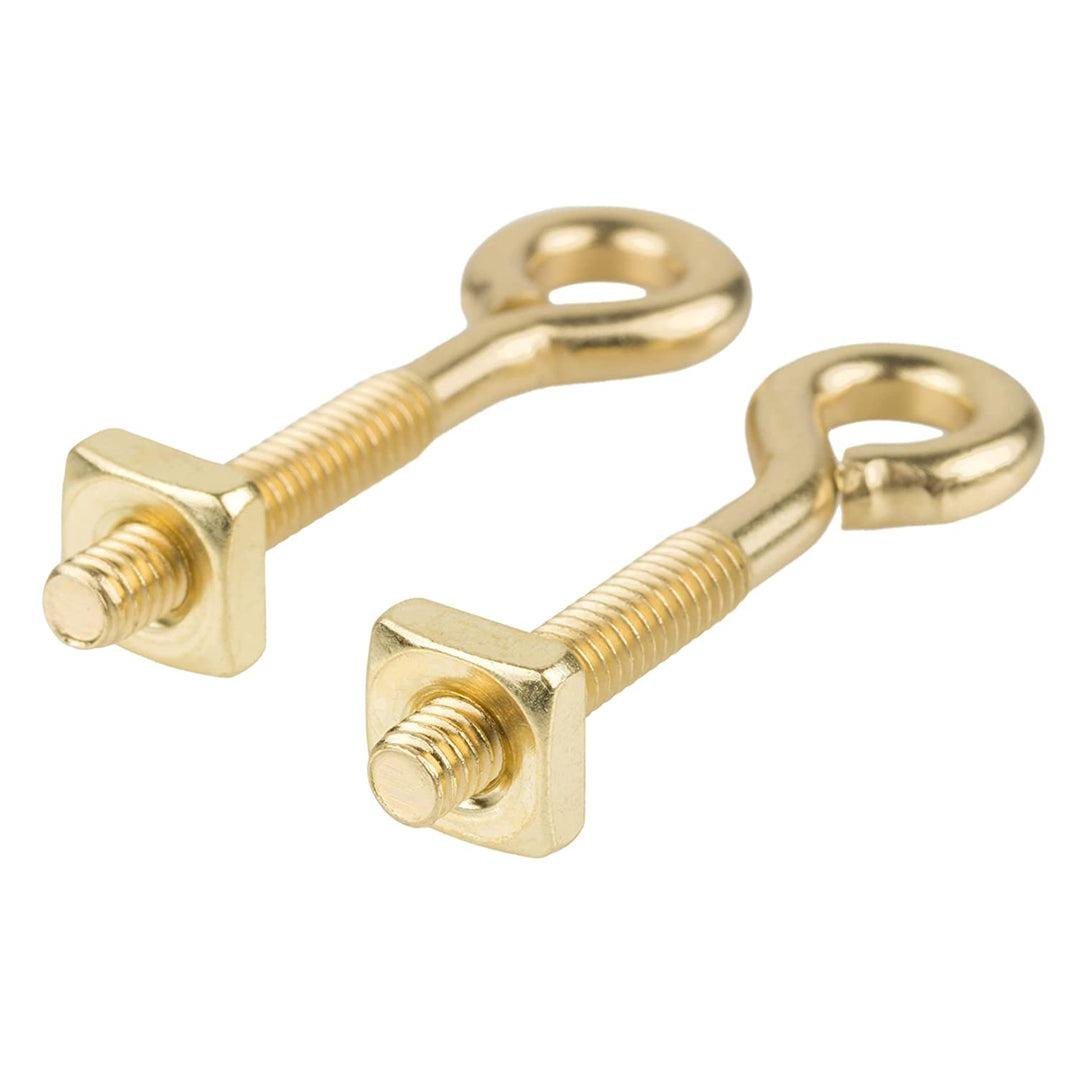

Brass Eye Bolts
Brass Eye Bolts are threaded fasteners with a circular eye at one end, designed for lifting, securing, guiding, and anchoring ropes, cables, and chains. They offer excellent corrosion resistance, durability, and an attractive finish, making them suitable for marine, electrical, architectural, and industrial applications.
For More Technical Details Click Here
Features
- Strong and durable eye design
- Excellent corrosion and rust resistance
- Precision-machined threads for secure fastening
- Non-magnetic and spark-resistant
- High tensile strength and long service life
- Easy installation and maintenance
- Available in standard and custom sizes
Specification
- Type: Plain Eye Bolt / Shoulder Eye Bolt
- Thread Type: Metric (MM), UNC, UNF, BSW, BSF or custom
- Manufacturing Process: CNC Machined / Forged
- Tolerance: As per international standards
- Custom dimensions available as per drawings and samples
Applications
- Marine and offshore equipment
- Lifting and rigging applications
- Electrical installations
- Industrial machinery
- Architectural and decorative fittings
- Construction and engineering projects
- Rope, cable, and chain fastening
Standards
- DIN 444
- DIN 580 (Lifting Eye Bolt – where applicable)
- ISO Standards (Equivalent)
- ANSI / ASME Standards
- Custom standards available on request
Length / Size
- Diameter: M4 to M24
- Length: 20 mm to 300 mm
- Eye Diameter: As per standard or customer requirements
- Custom sizes available
Material
- Free Cutting Brass IS 319 Type I
- CW614N / CW617N
- C36000
- CZ121 / CZ122
- Other brass grades available on request
Finish - Brass Eye Bolts
- Natural Brass
- Nickel Plated
- Tin Plated
- Chrome Plated
- Zinc Plated
- Polished Brass
- Custom coatings and finishes available on request
